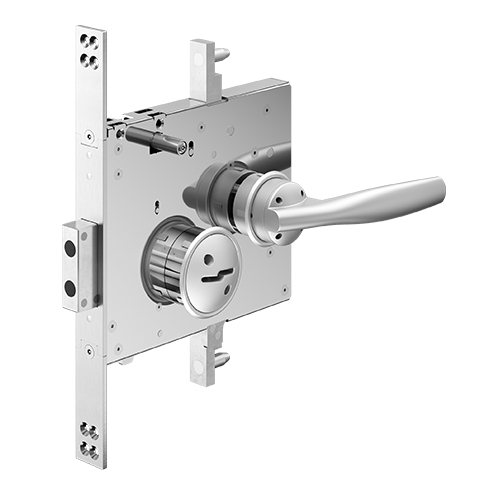

HSL C301

Compact basquill deadbolt lock

Basquill deadbolt lock for detention room doors with single turn bolt exclusion, additional bar locking and mechanical bolt position indicator on the key guide side. As replacement lock for e.g. 8.13.0001.3/4 and 8.14.0002.3/4.

Functional description

The HSL double-bit key is inserted into the lock.

The deadbolt is withdrawn with the key via a single tour (180° turn). The cremone bolts are retracted via a 45° turn of the lever upwards.

The door can be opened.

The door is being closed.

The cremone bolts are withdrawn downwards via a 45° turn of the lever. The bolt is driven out with the key via a single tour (180° turn).

The door is completely locked and secured.



Re-coding the lock

The locking mechanism can be re-coded to a different locking when it is unlocked (bolt retracted). This requires a key of the current locking and a key of the future locking.

Features

Basquill deadbolt lock for detention room doors with single turn bolt exclusion, additional bar locking and mechanical bolt position indicator on the key guide side. As replacement lock for e.g. 8.13.0001.3/4 and 8.14.0002.3/4.

Application areas

Type HSL C301 is designed as a replacement lock (retrofitting) for STUV single and double-bit locks and is mainly used in specially secured detention room doors and custody doors. The bolt is extended and withdrawn via one tour (180° key rotation). The additional Cremona rod locking to the bottom and top secures the door on three sides. The key can be removed in locked and unlocked state.

Overview

  • 1:1 Replacement of old STUV single- and double-bit locks with HSL C
  • designed for specially secured detention rooms and custody doors
  • Cremone bolt deadlocking optionally without, in extended, in withdrawn main bolt state
  • easy operation with HSL double-bit key (1 turn)
  • Lock can be re-coded without tools
  • Cremone rods are not included in the scope of delivery

Product locations

  • Detention room door
  • Custody door
  • Extra-secured detention door
Mobiler Select
Technical details
Options
Downloads
Accessories

Technical details

Dimensions: (LxWxH) 220 x 22 x 180 mm
Forend dimension: (LxWxH) 330 x 30 x 4 mm
Rod connector: (Ø) 10 mm
Bolt throw: 20 mm
Bolt material: Stainless steel
Lock case material: Stainless steel
Finishing: matt
Weight: 4,2 kg
Locking system: HSL double-bit
Levers: 7
mechanically re-codable: yes
mechanical bolt position indicator: yes, one-sided
max. side load forces: 30 kN
max. end load bolt counterforce: 6 kN
Number of audited locking operations: 500,000
IP rating: IP65
Operating temperature: -40°C to +65°C
Storage temperature: -40°C to +65°C
Relative humidity: 95% non condensing

Options

The following equipment options are available for lock type HSL C301:

  • S1 | Main Locking Mechanism: Lockable on one side
  • DR | DIN direction: right hand
  • DL | DIN direction: left hand
  • MK | Magnet in latch: front side
  • TO | Cremone bar blocking: without
  • TE | Cremone bar blocking: with bolt retracted
  • TA | Cremone bar blocking: with bolt pre-locked
  • AS | Removal barrier
  • PS | Production lock (dummy lock without tumbler lock mechanism)

S1 | Main Locking Mechanism: Lockable on one side

The key guide of the main locking mechanism is located on one side of the lock. This equipment is used e.g. for detention room locks.

Configurable options

  • Lockable on one side
  • Lockable on both sides

DR | DIN direction: right hand

If the hinges are on the right side of the door, it is the "DIN right" door opening.

Configurable options

  • DIN direction: right
  • DIN direction: left

DL | DIN direction: left hand

If the hinges are on the left side of the door, it is the "DIN left" door opening.

Configurable options

  • DIN direction: right
  • DIN direction: left

MK | Magnet in latch: front side

With a reed contact (provided by the customer) in the frame, this feature enables the electronic evaluation of the locking status of the door (signal: bolt locked and door in frame). The two magnets are visible on the front side of the bolt.

Configurable options

  • Bolt without magnet
  • Bolt with bar magnet
  • Latchbolt with magnet

TO | Cremone bar blocking: without

The cremone bolt mechanism can be retracted and extended independently of the lock's locking status. The cremone bolt mechanism can always be moved freely via the lever.

Configurable options

  • Cremone bar blocking: without
  • Cremone bar blocking: with bolt retracted
  • Cremone bar blocking: with bolt pre-locked

TE | Cremone bar blocking: with bolt retracted

The cremone bolt mechanism cannot be moved when the bolt is retracted (open state). Sequence of operation: Close the door, close the bolt, extend the cremone bolt mechanism.

This option prevents:

  • Locking the door from the outside via the cremone bolt by unauthorised persons

Configurable options

  • Cremone bar blocking: without
  • Cremone bar blocking: with bolt retracted
  • Cremone bar blocking: with bolt pre-locked

TA | Cremone bar blocking: with bolt pre-locked

The cremone bolt cannot be moved when the bolt is pre-locked (locked state). Operating sequence: Close the door, extend the cremone bolt mechanism, pre-lock the bolt.

This option prevents:

  • Retracting the cremone bars from the outside by unauthorised persons

Configurable options

  • Cremone bar blocking: without
  • Cremone bar blocking: with bolt retracted
  • Cremone bar blocking: with bolt pre-locked

AS | Removal barrier

The removal barrier prevents unauthorised removal of the lock when the door is open. The lock can only be removed when the locking elements are locked. Ergo, the double-bit key is absolutely necessary.

PS | Production lock (dummy lock without tumbler lock mechanism)

Dummy lock available for door production without security features. The production lock will be charged. After a faultless return (inspection by STUV Prison Solutions), the amount minus shipping costs will be refunded or charged.

Downloads

miscellaneous

Technische Zeichnung HSL-C301
